Machine Screws: Versatile Fasteners for Precision Engineering
What Are Machine Screws?
Precision-made machine screws are vastly used in many industries due to their versatility. Often used in manufacturing, electronics, automotive, machinery etc, these are a staple in both industry and DIY alike. They are essential for attaching materials such as plastics and metals, assembling machinery, and securing components in a wide range of products. Their precision and reliability make them indispensable in both small DIY projects and large industrial applications.
Understanding Machine Screws
Machine screws which are often referred to as precision fasteners are manufactured to strict DIN & ISO standards. They have a uniform diameter along the thread's full length and a flat point. The metric threads are almost always the standard metric course pitch.
They can be either screwed into a pre-tapped hole and tightened with a driver. Or can be inserted through a pre-drilled hole and attached with a nut and a washer.
Material Choices and Their Applications
Machine screws are made from a wide range of materials, each has specific benefits and is suitable for different uses and environments.
A2 & A4 Stainless steel machine screws are ideal for outdoors and harsh environments.
Zinc plated machine screws or a black zinc plated machine screw can be more suited to indoor use. Often used in electronics etc
Common Sizes And Head Types.
Machine screws come in various sizes, the most commonly used being between M1.6 – M6. Further to that, the most common lengths are between 3mm – 100mm, depending on the thread diameter. As the thread diameter increases, the available lengths become longer.
The heads on machine screws come in a variety of shapes and sizes, the most common being.
· Flat head countersunk machine screws
· Raised countersunk machine screws

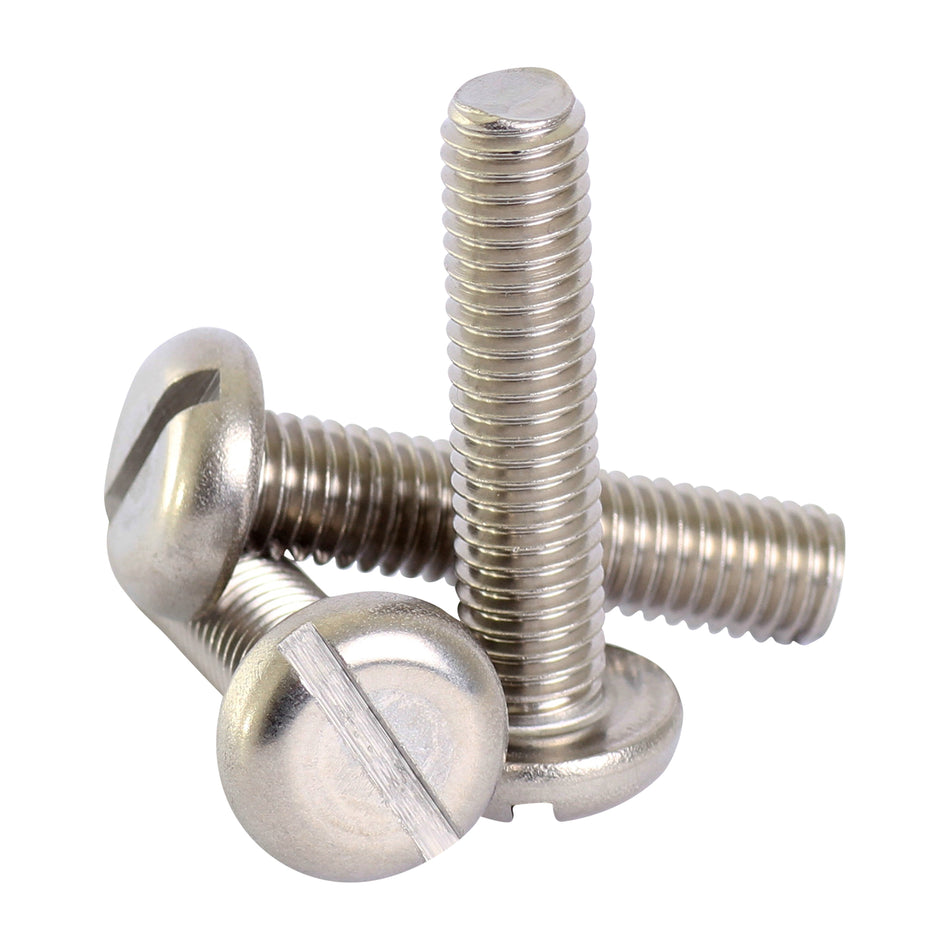

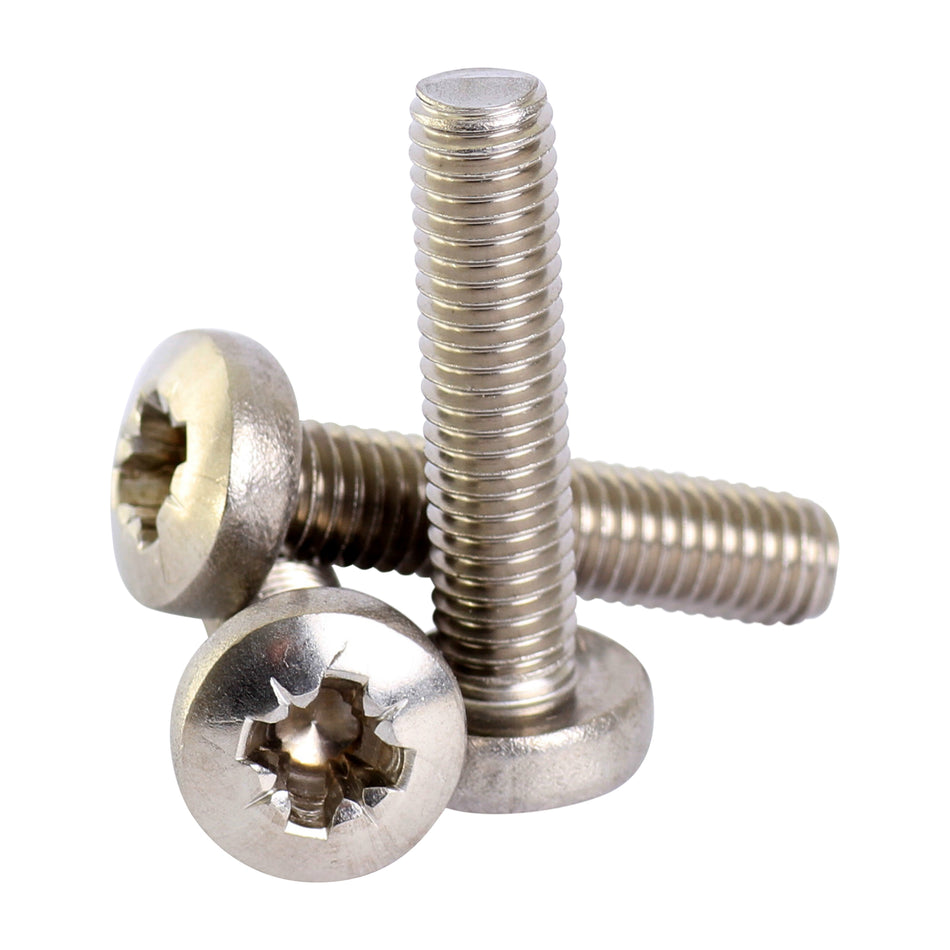

· Pan head machine screws
· Cheese head machine screws
Of these main types of machine screw heads, there are 4 main types of drive.
· Pozi drive
· Phillips drive
· Slotted drive
· Torx / Star drive
When selecting the appropriate machine screw, it is worth considering these factors:
-
Material: Choose a material that fits the environmental conditions and strength requirements of the application.
-
Drive Type: Consider the required torque and any special installation conditions.
-
Head Type: Determine if the head should be flush with the material or if a raised head is acceptable.
-
Size: Ensure the correct thread diameter and length for the intended use.
When using smaller sizes it can be difficult to get an accurate measurement of the machine screw thread diameter. It is advisable to use a set of digital callipers to get a precise measurement.
Conclusion
Machine screws play a vital role in modern assembly and manufacturing. Understanding their types, materials, and applications, along with proper selection and installation, ensures optimal performance in any project. Whether for securing delicate electronics or assembling heavy machinery, machine screws provide the precision and reliability needed for a wide range of applications.
