Your Ultimate Guide to Countersunk Socket Screws ISO 10642

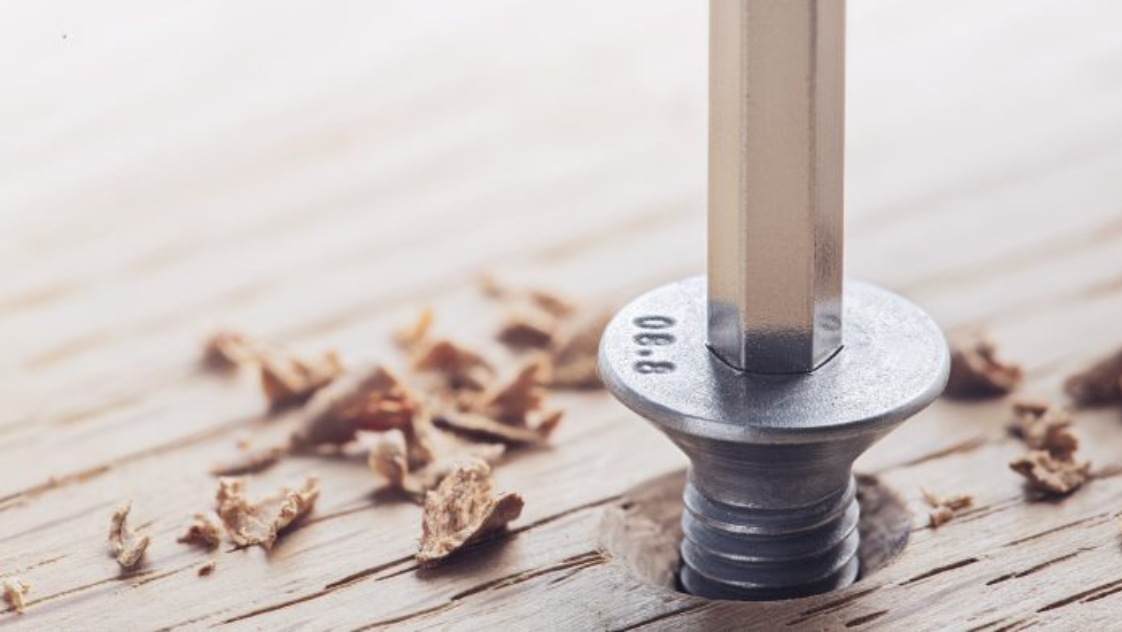

countersunk socket screw being tightened into wood

Key Highlights

  • Countersunk socket screws ISO 10642 are designed for a flush finish on work surfaces.
  • They are available in a wide range of materials, stainless steel and high tensile steel being the most common.
  • They are commonly used in machinery, furniture, and automotive industries.
  • The ISO 10642 standard ensures quality and dimensional accuracy.
  • Proper installation techniques are crucial for achieving the desired flush finish and secure hold.
  • Understanding the specifications, such as metric sizes and dimensions, is important for selecting the correct option for your needs.

Introduction To Countersunk Socket Screws:

When you need precision and a smooth flush finish, countersunk socket screws are a key choice. They are specially designed to sit flush against the surface after being installed. This feature reduces any bumps or sticking out parts of the head. This is why countersunk, aka a csk screw are popular in many areas. People use them in everything from electronics to machinery to woodworking.

As with all types of fixings and fasteners, terminology varies depending who you talk to. Some will call them a screw, some will call them countersunk bolts. Many people would refer to a fully threaded version as a screw. Additionally, they may refer to a partially threaded version as a countersunk bolt, or simply as a CSK bolt.

Let’s dig a little deeper on what they are and where they are used.

Understanding Countersunk Socket Screws ISO 10642

As a type of socket screw, they are precision fasteners defined by the ISO 10642 standard and are widely used in many industries. They have a special countersunk head design. Consequently, when they are screwed in, they fit perfectly flush with the material’s surface. As a result, they create a clean and tidy look.

Manufacturers produce them to meet the tough guidelines set by ISO 10642 to ensure consistent size, performance, and quality. This international standard makes sure they are suitable for different uses. They are commonly used in general manufacturing and, moreover, in specialised fields like aerospace and automotive. In these industries, precision and reliability are very important.

The Basics of Socket Countersunk Screws

Countersunk socket screws are also known as flat top, or flat head screws and are easy to spot because they have cone-shaped heads. This design helps them fit tightly into a conical hole, called a countersink, which matches the angle of the head.

What makes a countersunk head screw great is that they create a smooth surface when used correctly. The screw head can sit level with or just below the surface of the material. This improves both the look and safety of the project.

Their flush design means there are no raised edges protruding, which helps stop snags and accidental loosening. They work well with many materials, such as metal, wood, and plastic. Due to their flexibility and ability to provide a clean finish, they are a top choice for many uses.

Characteristics of Socket Countersunk Screws

One great thing about socket countersunk screws is that you can use a hex key or Allen wrench to install them. The hex socket in the screw head lets you tighten them with a lot of force, this helps make sure it holds tightly in place.

One great advantage of the hex socket is the ability to use a ball ended hex key to tighten them. You Can offset the angle at which you tighten them if there is limited space above the head.

Manufacturers make socket countersunk screws from different materials to meet various project needs. Common choices are stainless steel, which resists rust and chemicals, and varying strengths of high tensile steel, known for its strength in tough tasks.

They come in a multitude of sizes, you can find them in metric and imperial sizes but this post focusses on metric only. They also come with various finishes like self colour steel, or zinc plating, which adds a bit more protection against rust.

Key Advantages:

The popularity of socket countersunk screws vs other types of socket screw comes from their many benefits. One major advantage is that they provide a flush finish. This is important when you need a smooth surface.

You have the option on screwing them directly into a pre countersunk and threaded hole to fasten them. Alternatively, if more appropriate for your application, you can insert them into a pre-countersunk un-threaded hole and fasten them on the other end with a nut and washer.

They also have a great way of spreading torque because of their internal hex socket drive. This makes the fastening stronger and more reliable. It helps to keep the assembly safe and lasting longer. Their strength, versatility, and nice look make them a great choice for many different types of projects.

Common Uses:

People use CSK or socket countersunk screws in a vast range of applications, from heavy-duty machinery to fine electronics. They create a flat, neat look, which is important when both appearance and function matter.

You can often see them in furniture, car parts, and construction materials. Manufacturers use them in electronics and appliances to ensure a smooth and safe fit. Their ability to work well with different materials and in many situations ensures they are key in both manufacturing and building projects.

Construction projects widely use them to eliminate the issue of a protruding head. This feature is handy when you need to place another part on top of a fastened part. Another great example would be their use on walkways to avoid trip hazards from the heads sticking up.

ISO 10642 vs DIN 7991: Is There a Difference?

ISO 10642 was introduced to replace DIN 7991 although DIN 7991 are still available from certain suppliers. It is also common to see some suppliers advertise them as DIN7991 / ISO10642 due to their close resemblance.

There are some very slight differences between the 2, DIN7991 as defined by the Deutsches Institut für Normung and ISO10642 as defined by ISO, mostly these are small and negligable though.

Common Materials Used To Produce Socket Countersunk Screws

Always consider the conditions they will face when deciding which material to purchase.

Stainless steel is a great choice if you need something that will be resistant to moisture or chemicals, A2 and A4 being the most common in strengths of 50, 70 and 80. Ask us about BUMAX if you need the corrosion resistance of stainless steel combined with high strength; BUMAX is touted as the world’s strongest stainless steel fastener.

For high strength applications where corrosion is not as much of a worry high tensile steel bolts are a good choice for you. The 2 most common types being self colour which are black in colour but offer virtually no corroision resistance at all. Or if you prefer some resistance to rust you could opt for zinc plated as an alternative. Common grades available would be 8.8, 10.9 and 12.9. When using higher-grade zinc-plated fasteners, check if the manufacturer has de-embrittled them during production, as they can become brittle during plating.

Many choose galvanized steel for steel construction because its thick zinc plating offers high resistance to corrosion.

Less commonly used would be aluminium where there is a need for a lightweight fastener.

To recap, here is a list of the most common materials in use.

Understanding The Specifications of Socket Countersunk Screws

It is important that you understand the specifications of ISO 10642 when selecting the correct option for your application. The key things to look at are the thread diameter, head diameter, the length (including the head) and the Allen key size.

Unlike other types of fasteners, when measuring a countersunk you include the head, so you would measure from the top of the head to the end of the thread.

While most sizes typically come fully threaded as standard it is worth noting that in some sizes of high tensile versions over a certain length, they may be partially threaded. People often call the partially threaded version a countersunk bolt If you need a certain variant it would be worth double checking before ordering to avoid disapointment.

It is important to note that the size of the allen key the screw takes does not correspond to the M size of the screw. The M size is based on the thread diameter only.

Here is a basic table of the most common sizes, just below it there is an option to get a full detail PDF sent to you.

Size

Head Diameter

Head Height

Key Size

Angle of Head

M2

3.8mm

1.24mm

1.3mm

90°

M2.5

4.8mm

1.55mm

1.5mm

90°

M3

6.7mm

1.86mm

2mm

90°

M4

8.9mm

2.48mm

2.5mm

90°

M5

11.2mm

3.1mm

3mm

90°

M6

13.4mm

3.72mm

4mm

90°

M8

17.9mm

4.96mm

5mm

90°

M10

22.4mm

6.2mm

6mm

90°

M12

26.8mm

7.4mm

8mm

90°

M16

33.6mm

8.8mm

10mm

90°

ISO 10642 basic dimensions

If you would like a full detail colour PDF emailed over, just enter your details below and we will have it straight over to you.

Conclusion

Hopefully this guide has helped you understand the basics of socket countersunk screws and has given you an understanding of what they are and what they are used for. You should give special consideration to the material you select based on the strength required and any considerations that need to be taken into account on the environment they will be present in.

Many industries worldwide use these highly versatile screws, which offer numerous advantages over other types of screws.

See below for some common questions that you may have.

Need any help or advice, just give us a shout, we are always happy to help and advise where we can.

Frequently Asked Questions

Are Countersunk and CSK The Same Thing?

Yes, people often call a countersunk a CSK for short when referencing them.

How to Correctly Install Countersunk Socket Screws?

To get a smooth finish, it’s important to make a pre-drilled conical hole. This hole should match the angle of the countersunk head. Some people simply use a larger drill bit to create the countersink, or you can use a tool specifically for this purpose. Use a hex key or Allen wrench to tighten the screw. Make sure the head is flat with or just below the surface.

Can ISO 10642 Screws Be Used in All Types of Materials?

ISO 10642 screws come in different materials, such as stainless steel, aluminium, and high tensile steel. This variety allows them to work with many materials. It’s important to choose the right material based on how strong and resistant to rust you need it to be for your specific task.

What Is a Countersunk Screw?

Also called a countersunk bolt, a countersunk screw has a head that is angled. This design allows it to fit into a special hole that makes the head sit even with the surface around it. This gives a clean, flush finish.

What Are The Advantages of Countersink Screws?

Countersink screws have many benefits. They give a flush finish that looks better and is safer. For a full explanation, read above.

What are Metric Socket Countersunk Screws?

Manufacturers design these fasteners with a special head that sits inside the receiving material, providing a flush finish. They have a hex drive that helps with easy installation. Their sizes follow the metric system making them compatible with other metric fasteners.

What Are Countersunk Socket Screws And Where Are They Commonly Used?

Countersunk socket screws have a head that sits flush with the surface when installed. People like them because they are strong and provide a secure hold. You often find these screws in machinery, electronics, and furniture assembly.

What Advantages Do Countersunk Socket Screws Have Over Other Types Of Screws?

The countersunk head of these screws gives a flat surface which eliminates snagging and allows other parts or materials to sit on top of the fastened surface.

How Do You Properly Install Countersunk Socket Screws?

To install a countersunk screw, you will need to countersink a predrilled hole to allow the head to sit neatly inside the receiving material before inserting it. Use a hex key to tighten it.

Are there different materials available for socket countersunk screws, and how do they affect performance?

Yes there are various materials available, read the article above for a full explanation.

What How Do You Measure a Socket Countersunk Screw?

Unlike other types of screw or bolts, you measure a countersunk including the head. This means that you measure from the top of the head to the end of the tread.

Are There Any Special Tools Required For Working With Countersunk Socket Screws?

Working with countersunk socket screws requires some special tools. You need a countersink drill bit to make the right angled hole. You also need a hex key, also known as an Allen wrench, that fits the size of the screw drive for a proper installation.

How Do You Ensure A Flush Finish When Using Countersunk Socket Screws?

To get a smooth surface with countersunk screws, start by drilling a conical hole that matches the angle of the screw head. Then, tighten the screw gently. This keeps it from being too tight and makes sure the head is level with the surface of the material.
